Technical Features

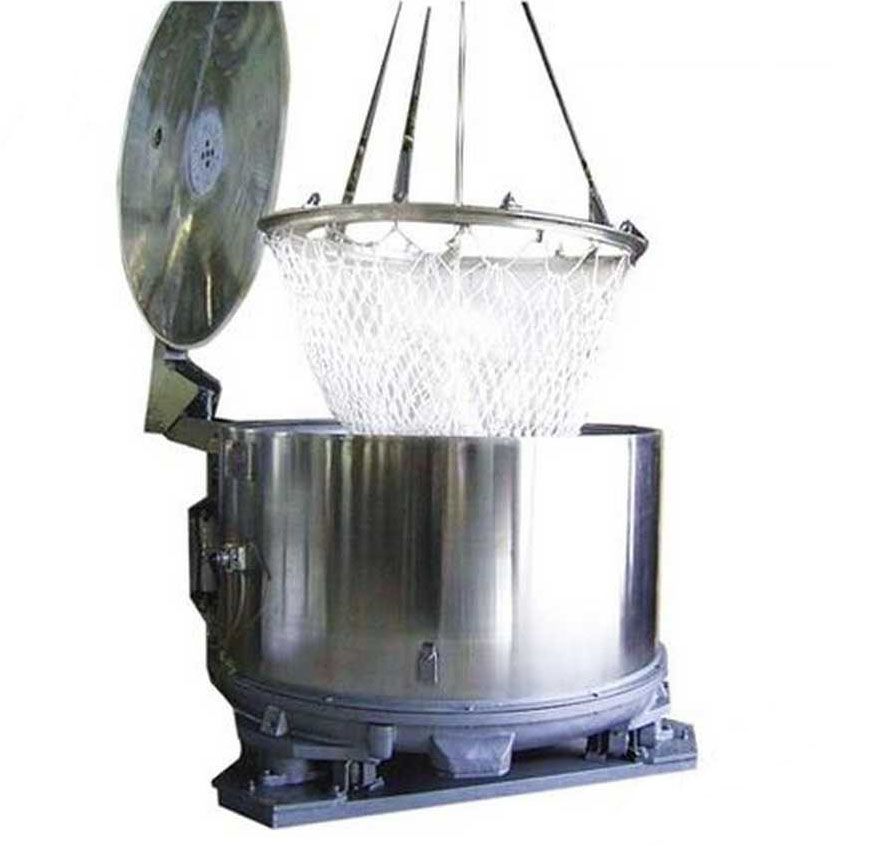

■ This mesh bag dehydrator is suitable for the dehydration of textiles, tows, knitted fabrics, woven fabrics, ready-made garments, skeins and other materials.

■ The inner and outer cages are made of high-quality stainless steel, featuring an attractive appearance, sturdiness and a long service life. ■ The straight cylindrical inner cage has no head and is equipped with a sturdy inner cover, which facilitates the transportation and loading of mesh bags with dehydrated materials. ■ Ultra-silence & perfect balance for an optimal working environment. The machine adopts a sliding support structure, with a specially designed motor located at its center. Therefore, no noise or vibration will be generated even during high-speed operation. ■ Advanced frequency conversion technology is adopted for stepless speed regulation and energy saving. The machine starts up slowly and accelerates automatically from 10 r.p.m. to high speed, keeping energy consumption at a low level. ■ Frequency conversion automatic braking is used instead of mechanical braking, thus greatly reducing the mechanical maintenance rate. ■ Safety devices: The inner cover is equipped with 4 mechanical locks and the outer cover with 3 mechanical locks, together with an unbalance protection switch, to ensure operational safety.

■ Optional accessory: Pneumatic cover opening for safer and more convenient operation.

Technical Parameters

Model	Diameter of Basket	Height of Basket	Basket Contents	Capacity		Motor Power	Speed rpm	Dimensions （mm）
				Dry	Wet
CO-N1200	1200mm	600mm	650ltr	110kgs	350kgs	5.5	750-960	1800x1600x1220
CO-N1500	1500mm	600mm	1000ltr	200kgs	600kgs	10	750-960	2150x1800x1300
CO-N1800	1800mm	800mm	1900ltr	320kgs	1000kgs	15	600-750	2550x2200x1730

We reserve the right to modify technical specifications finally without prior notice.
