Scope of Application

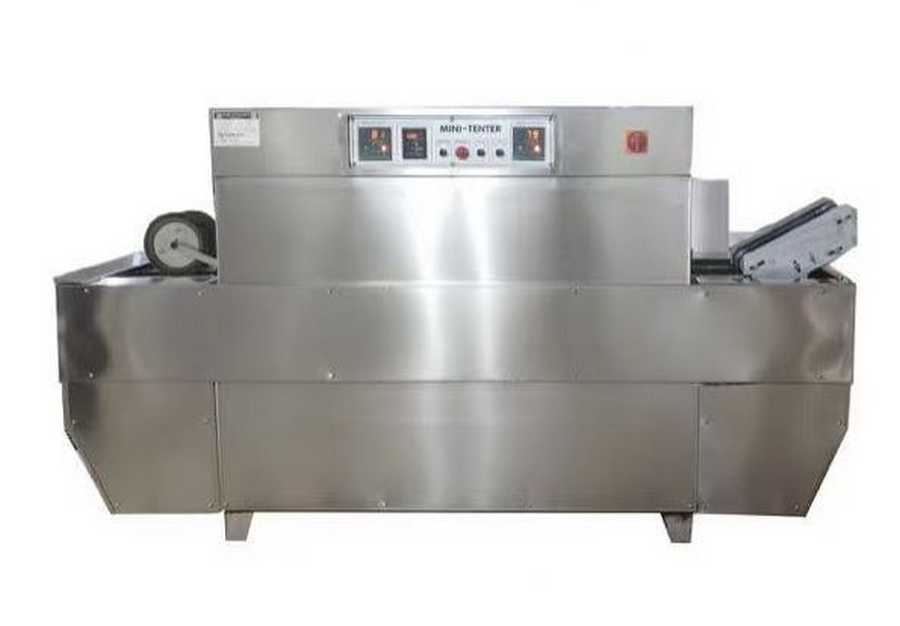

This machine is suitable for simulating workshop dyeing, finishing and drying processes in the laboratory.

Technical Parameters

• Operating Temperature: Room temperature to 250°C
• Temperature Controller Control Accuracy: ±1°C
• Drying Time Interval: 20s - 360s
• Variable Frequency Speed Regulation: 0 - 6 m/min
• Sample Width: 160mm - 330mm
• Heater: 3 sets × 6KW
• Total Power: 1800W
• Power Supply: 380V 50HZ
• Overall Dimensions: L2800 × W900 × H1360mm
• Approximate Weight: 650KG
