Technical Features

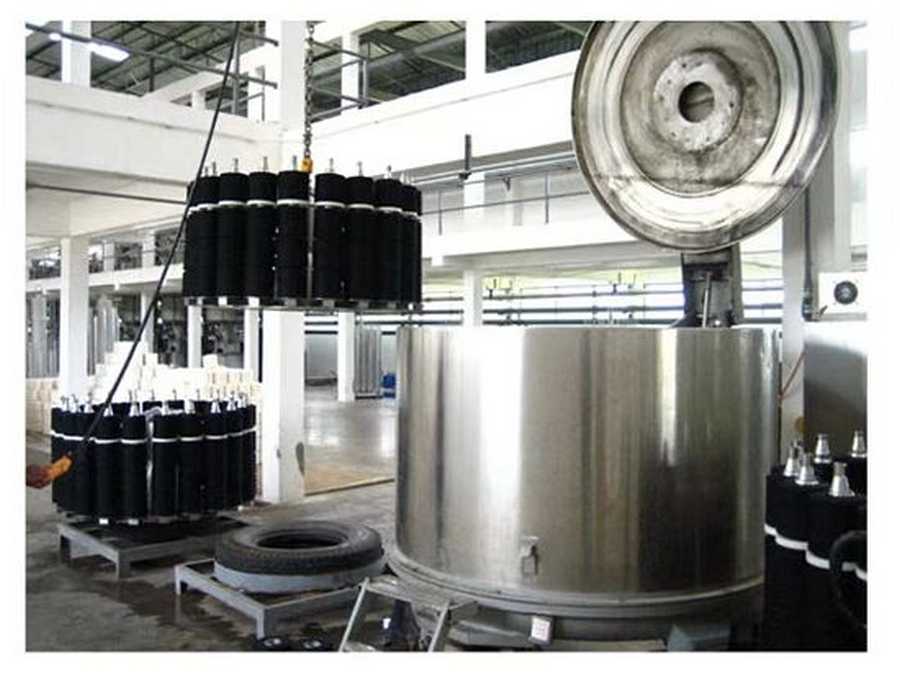

■ Specifically designed for cone yarn dehydration, it delivers optimal dehydration performance and is suitable for all types of yarns.

■ The petal-shaped inner cage is made of high-quality stainless steel, preventing deformation of cone yarn bobbins. ■ The machine body is crafted from premium stainless steel, featuring sturdiness, durability, as well as an elegant and sleek appearance. ■ An optional yarn column type cone yarn holding cage is available, which shortens the time for putting in and taking out cone yarns and enables more convenient operation. (Excluding model CO-II-800) ■ The automatic control system adopts advanced and reliable frequency conversion control, supporting automatic timing, automatic braking, and stepless speed setting as required. ■ Pneumatic cover opening device ensures safe operation. (Excluding model CO-II-800) ■ Full automatic frequency conversion control eliminates the need for mechanical braking, greatly reducing the mechanical maintenance rate.

■ Ultra-silent operation and perfect dynamic balance create a first-class working environment.

Technical Parameters

型号	Diameter of Basket (mm)	Capacity	Power (kW)	Speed (rpm)	Machine Dimensions ( mm )
CO-II-800	φ800×H500	(10×3=30 packages)	2.2	≤750	1450×1150×1080
CO-II-1200	φ1200×H700	(17×4=68 packages)	5.5	≤750	1800×1600×1220
CO-II-1500	φ1500×H700	(22×4=88 packages)	10	≤750	2150×1800×1300

We reserve the right to modify technical specifications finally without prior notice.
