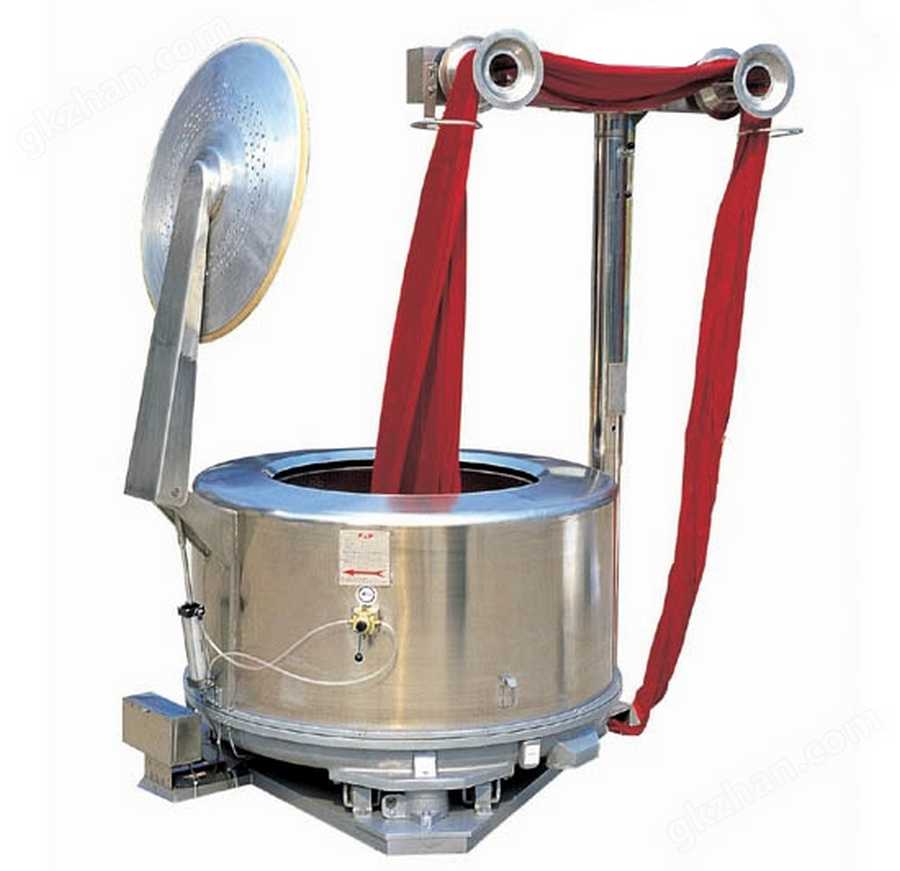

CO- Series Variable Frequency Full Automatic Dehydrator

Technical Features

■Suitable for dehydration of skeins, woven fabrics, knitted fabrics, tows, ready-made garments and other materials in the textile industry.

■ The inner and outer cages are made of high-quality stainless steel, with an attractive appearance, sturdiness and a long service life.

■ The inner cage is equipped with a head, making manual feeding and discharging more comfortable and safe.

■ Ultra-silence & perfect balance for an optimal working environment.

The machine adopts a sliding support structure with a specially designed motor located at its center.

Therefore, no noise or vibration is generated even during high-speed operation.

■ Advanced frequency conversion technology is adopted for stepless speed regulation and energy saving.

The machine starts up slowly and accelerates automatically from 10 r.p.m. to high speed, keeping energy consumption at a low level.

■ Frequency conversion automatic braking is adopted instead of mechanical braking, thus greatly reducing the mechanical maintenance rate.

■ Optional accessory: Pneumatic cover opening for safer and more convenient operation.

■ Optional accessory:

A full stainless steel cloth feeding, discharging and dropping rack specially designed for dehydration of knitted and woven fabrics can be matched, enabling more convenient operation.

Technical Parameters

Model	Diameter of Basket	Height of Basket	Basket Contents	Capacity		Motor Powe	Speed Rpm	Dimensions (㎜)
Model	Diameter of Basket	Height of Basket	Basket Contents	Dry	Wet	Motor Powe	Speed Rpm	Dimensions (㎜)
CO-800	800 mm	500 mm	250ltr.	50kgs	150kgs	2.2	750 - 960	1450×1150×1080
CO-1200	1200 mm	600 mm	650ltr.	110kgs	350kgs	5.5	750 - 960	1800×1600×1220
CO-1500	1500 mm	600 mm	1000ltr.	200kgs	600kgs	10	750 - 960	2150×1800×1300
CO-H1500	1500 mm	700 mm	1200ltr.	220kgs	650kgs	10	750 - 960	2150×1800×1400
CO-1800	1800 mm	800 mm	1900ltr.	320kgs	1000kgs	15	600 - 750	2550×2200×1530
CO-H1800	1800 mm	1000 mm	2350ltr.	400kgs	1200kgs	18.5	600 - 750	2550×2200×1730
CO-2000	2000 mm	800 mm	2400ltr.	400kgs	1200kgs	18.5	600	2900×2400×1650
CO-H2000	2000 mm	1000 mm	3000ltr.	450kgs	1350kgs	22	600	2900×2400×1850

We reserve the right to modify technical specifications finally without prior notice.
